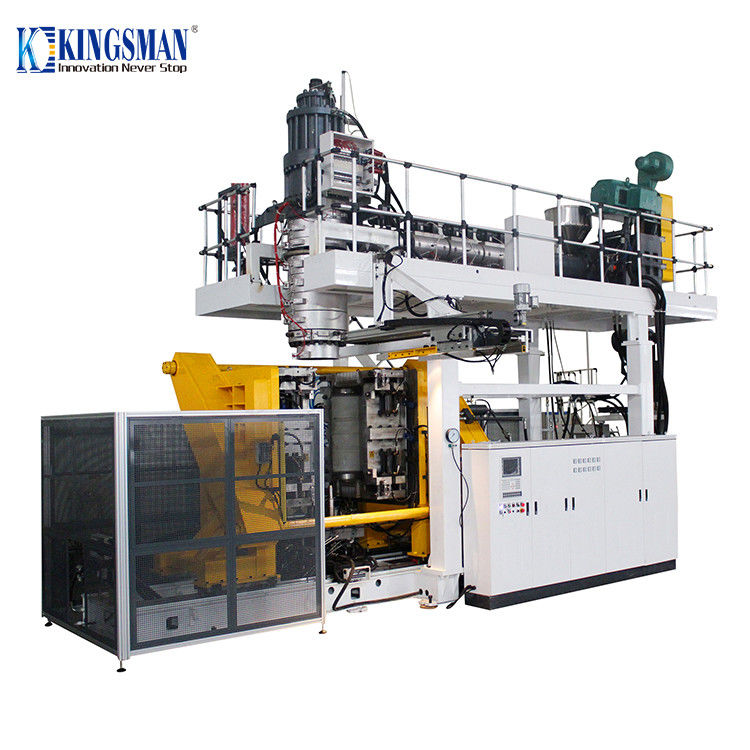

160L 260L HDPE Plastic Drum Blow Molding Machine Servo Hydraulic System

160L 260L HDPE Plastic Drum Blow Molding Machine Servo Hydraulic System

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: KINGSMAN
Certification: CE
Model Number: DM260-120

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard export packing
Supply Ability: 40 Set/Sets per Year
Get Best Price Contact Now

Detail Information

Condition: New Application: Bottle
Plastic Processed: PE, PP Year: NEW
Voltage: 380V-440V Dimension(L*W*H): 9.3 X4.6 X 6.6 M
After-sales Service Provided: Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support Warranty: 1 Year
Blow Moulding Type: Extrusion Blow Moulding Automatic: Yes
Power(W): 55KW Weight: 33 T
Port: SHANGHAI
High Light:

hdpe blow molding machine

,

bottle blow molding machine

Product Description

 HDPE blow molding 160l 260L drum blowing machine

Product Description

Machine profile

Accumulator head machine for 200L-260L Single/Double L-ring Drum;

20L Accumulator head;

Ceramic heaters for barrel;

B&R control system including 100 WDS;

Gripper/Servo Gripper for bottle Take out;

Servo hydraulic system: DAIKIN/REXROTH for option



TYPE: DM260-120

SERVO BLOW MOULDING MACHINE

ACCUMULATOR HEAD

Volume      200L-260L

NET WEIGHT   9.5KG-11KG

OUTPUT      20-22PCS/H



Specifications



Max container capacity L 260
Machine demension(L*W*H) M 9.3*4.6*6
Total weight T 33
Die head
Type of die head SET Accumulator
Max Storge Volume L 20
Die Diameter MM 180-400
Number of heating Zone Zone 5
Die head Heating Power KW 52
WDS system control Points B&R 100
With View Stripe for choice
Extruder system
Main Screw Diameter MM 120
Screw L/D ratio L/D 30
Melting Capacity KG/H 250
No of Heating Zone Zone 5
Heating Power KW 47
Extruder motor Power KW 130
Clamping Unit
Double Station
Max space between Platen MM 750-1750
Platen Size MM 1500*1200
Clamping unit KN 750-1750
Clamping unit Stroke MM 1000
Blow System(Optional)
Blow pin up / down stroke MM 150
Control System
Control system Brand B&R ( Austria)
Wall thickness control Brand B&R
Power
Total Power KW 240
Air pressure MPA 10
Air consumption M³/h 3
Water pressure MPA 4
Cooling Water consumption M³/h 20
Average energy consumption KW 100
Company Information

As a member of SUNRISE GROUP. KINGSMAN MACHINERY dedicated and specialized in manufacturing, R&D, and marketing of high-tech blow molding machines. It is about 160 km from KINGSMAN to Shanghai PUDONgle Airport, and 50km to Wuxi Airport.

KINGSMAN equipped with excellent processing machines and strict QC system. Also, KINGSMAN provides blow molding project-solution with customers via advanced techniques, well-performed machines and good after-sales services.

KINGSMAN machine can produce automatic blow molding machine manufacturer specialised in making extrusion blow molding machine, HDPE blow molding, bottle moulding machine, hydraulic blow molding machine, hydraulic servo blow molding machine, plastic molding, extrusion molding, plastic moulding, plastic molding machine, extrusion molding machine, bottle making machine, plastic bottle making machinemilk bottle making machine,stacking barrel making machine, HDPE bottle machine, stacking barrel machine, chemical bottle making machine, jerry can blow molding machine, daily chemical making machine, pesticide bottle making machine, toy making machine.



Professional and experienced staffs are devoted in machine manufacturing, R & D, and after-sales departments, integrating German & Italy technology.

KINGSMAN pursuit: precise design, strict manufacturing and management, timely & efficient after-sales service.

KINGSMAN hopes to cooperate with all customers to reach win-win benefit and share the future together.

Our Services



KINGSMAN Company is the leadership of Extrusion blow moulding machine manufacturer Which  had long-Term cooperation with KUATEX TEXTRON company from year 2010-2013 for 6 layer fuel tank machine.

KINGSMAN Company is espeicalized in Automatic Blow Moulding machine with High production.and now focus on Servo hydraulic machine for energy saving.
