• 16 Ton Automatic Blow Molding Machine , Plastic Bottle Blow Moulding Machine
  • 16 Ton Automatic Blow Molding Machine , Plastic Bottle Blow Moulding Machine
16 Ton Automatic Blow Molding Machine , Plastic Bottle Blow Moulding Machine

16 Ton Automatic Blow Molding Machine , Plastic Bottle Blow Moulding Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: KINGSMAN
Certification: CE
Model Number: DM15D-90

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard export packing
Supply Ability: 80 Set/Sets per Year
Get Best Price Contact Now

Detail Information

Condition: New Application: Bottle
Plastic Processed: PE, PP Year: New
Voltage: 380V-440V Dimension(L*W*H): 6.1 X4.1 X 3.6M
After-sales Service Provided: Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support Warranty: 1 Year
Blow Moulding Type: Extrusion Blow Moulding Automatic: Yes
Power(W): 55KW Weight: 16 T
Port: SHANGHAI
High Light:

automatic HDPE PP blow molding machine

,

auto blow moulding machine

Product Description

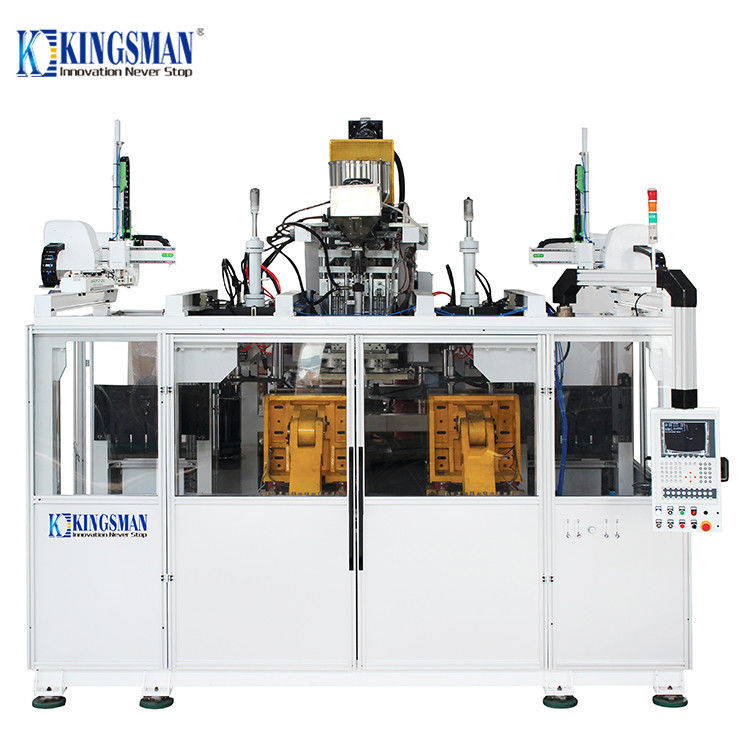

 HDPE Fully Automatic Blow Molding Machine

Product Description
Max container capacity L 15
Machine demension(L*W*H) M 6.1*4.1*3.6
Total weight T 16
Die head
Number of Die head SET 1,2,3,4
Number of heating Zone Zone 4
Die head Heating Power KW 9
WDS system control Points B&R 100
With View Stripe for choice
Extruder system
Main Screw Diameter MM 90
Screw L/D ratio L/D 25
Melting Capacity KG/H 200
No of Heating Zone Zone 4
Heating Power KW 24
Extruder motor Power KW 37-6 Grade
Clamping Unit
Double Station
Max Mould Size (W*H) MM 680*500
Max space between Platen MM 200-660
Platen Size MM 520*560
Clamping unit KN 270
Mould Thickness MM 305
Control System
Control system Brand B&R ( Austria)
Wall thickness control Brand B&R
Power
Total Power KW 90
Air pressure MpA 0.8
Air consumption M³/h 2
Water pressure MPA 4
Cooling Water consumption M³/h 15
Average energy consumption KW 55

16 Ton Automatic Blow Molding Machine , Plastic Bottle Blow Moulding Machine 0

Company Information



As a member of SUNRISE GROUP. KINGSMAN MACHINERY dedicated and specialized in manufacturing, R&D, and marketing of high-tech blow molding machines. It is about 160 km from KINGSMAN to Shanghai PUDONgle Airport, and 50km to Wuxi Airport.

KINGSMAN equipped with excellent processing machines and strict QC system. Also, KINGSMAN provides blow molding project-solution with customers via advanced techniques, well-performed machines and good after-sales services.



KINGSMAN machine can produce automatic blow molding machine manufacturer specialised in making extrusion blow molding machine, HDPE blow molding, bottle moulding machine, hydraulic blow molding machine, hydraulic servo blow molding machine, plastic molding, extrusion molding, plastic moulding, plastic molding machine, extrusion molding machine, bottle making machine, plastic bottle making machinemilk bottle making machine,stacking barrel making machine, HDPE bottle machine, stacking barrel machine, chemical bottle making machine, jerry can blow molding machine, daily chemical making machine, pesticide bottle making machine, toy making machine.



Professional and experienced staffs are devoted in machine manufacturing, R & D, and after-sales departments, integrating German & Italy technology.

KINGSMAN pursuit: precise design, strict manufacturing and management, timely & efficient after-sales service.

KINGSMAN hopes to cooperate with all customers to reach win-win benefit and share the future together.

Our Services



KINGSMAN Company is the leadership of Extrusion blow moulding machine manufacturer Which  had long-Term cooperation with KUATEX TEXTRON company from year 2010-2013 for 6 layer fuel tank machine.

KINGSMAN Company is espeicalized in Automatic Blow Moulding machine with High production.and now focus on Servo hydraulic machine for energy saving.
