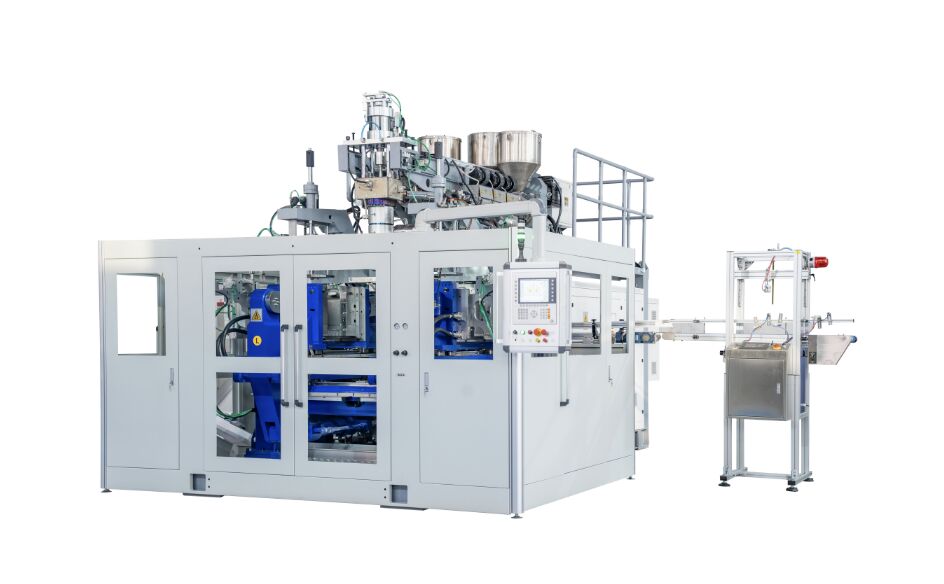

Blue Double Station Blow Moulding Machine 18M³/h Cooling Water Consumption
Product Details:
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | KINGSMAN |
| Certification: | CE |
| Model Number: | DM30D-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case packing,Standard export packing |
| Supply Ability: | 50 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Application: | Bottle |
|---|---|---|---|
| Plastic Processed: | PE, PP | Year: | NEW |
| Voltage: | 380V-440V | Dimension(L*W*H): | 6.1*6.4*3.6M |
| After-sales Service Provided: | Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support | Warranty: | 1 Year |
| Functional And Features: | Chemical;Commodity | Blow Moulding Type: | Extrusion Blow Moulding |
| Automatic: | Yes | Power(W): | 50KW |
| Weight: | 18T | Port: | SHANGHAI |
| High Light: | pp blow moulding machine,extrusion moulding machine |
||
Product Description
HDPE high speed extrusion blow moulding machine
| Max container capacity | L | 30 |
| Machine demension(L*W*H) | M | 6.1*6.4*3.6 |
| Total weight | T | 16 |
| Die head | ||
| Type of die head | SET | 1 |
| Number of heating Zone | Zone | 4 |
| Die head Heating Power | KW | 14 |
| WDS system control | Points | B&R 100 |
| With View Stripe for choice | ||
| Extruder system | ||
| Main Screw Diameter | MM | 75*2 |
| Screw L/D ratio | L/D | 25 |
| Melting Capacity | KG/H | 120*2 |
| No of Heating Zone | Zone | 3*2 |
| Heating Power | KW | 15*2 |
| Extruder motor Power | KW | 30*2 |
| Clamping Unit | ||
| Double Station | ||
| Max space between Platen | MM | 450-950 |
| Platen Size | MM | 630*580 |
| Clamping unit | KN | 300 |
| Control System | ||
| Control system | Brand | B&R ( Austria) |
| Wall thickness control | Brand | B&R |
| Power | ||
| Total Power | KW | 150 |
| Air pressure | Bar | 6~8 |
| Air consumption | M³/h | 2.2 |
| Water pressure | Bar | 4 |
| Cooling Water consumption | M³/h | 18 |
| Average energy consumption | KW | 58 |
KINGSMAN equipped with excellent processing machines and strict QC system. Also, KINGSMAN provides blow molding project-solution with customers via advanced techniques, well-performed machines and good after-sales services.
KINGSMAN machine can produce automatic blow molding machine manufacturer specialised in making extrusion blow molding machine, HDPE blow molding, bottle moulding machine, hydraulic blow molding machine, hydraulic servo blow molding machine, plastic molding, extrusion molding, plastic moulding, plastic molding machine, extrusion molding machine, bottle making machine, plastic bottle making machinemilk bottle making machine,stacking barrel making machine, HDPE bottle machine, stacking barrel machine, chemical bottle making machine, jerry can blow molding machine, daily chemical making machine, pesticide bottle making machine, toy making machine.
Professional and experienced staffs are devoted in machine manufacturing, R & D, and after-sales departments, integrating German & Italy technology.
KINGSMAN pursuit: precise design, strict manufacturing and management, timely & efficient after-sales service.
KINGSMAN hopes to cooperate with all customers to reach win-win benefit and share the future together.
KINGSMAN Company is the leadership of Extrusion blow moulding machine manufacturer Which had long-Term cooperation with KUATEX TEXTRON company from year 2010-2013 for 6 layer fuel tank machine.
KINGSMAN Company is espeicalized in Automatic Blow Moulding machine with High production.and now focus on Servo hydraulic machine for energy saving.
