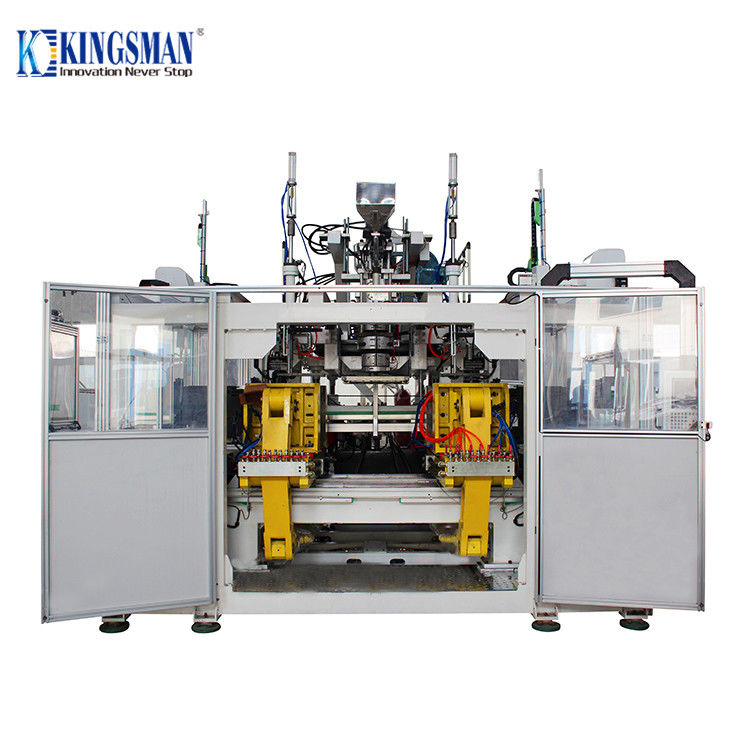

30L Extrusion Blow Molding Equipment  150kw For Plastic

30L Extrusion Blow Molding Equipment 150kw For Plastic

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: KINGSMAN
Certification: CE
Model Number: DM30D-100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Wooden case packing,Standard export packing
Supply Ability: 50 Set/Sets per Year
Get Best Price Contact Now

Detail Information

Application: Bottle Plastic Processed: PE, PP
Voltage: 380V-440V Dimension(L*W*H): 6.1*6.4*3.6M
After-sales Service Provided: Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support Warranty: 1 Year
Functional And Features: Chemical;Commodity Blow Moulding Type: Extrusion Blow Moulding
Automatic: Yes Power(W): 50KW
Weight: 18T Port: SHANGHAI
High Light:

30L extrusion blow molding equipment


30L plastic blow molding machine


150kw plastic blow molding machine

Product Description

HDPE high speed extrusion blow moulding machine




Max container capacity L 30
Machine demension(L*W*H) M 6.1*6.4*3.6
Total weight T 16
Die head
Type of die head SET 1
Number of heating Zone Zone 4
Die head Heating Power KW 14
WDS system control Points B&R 100
With View Stripe for choice
Extruder system
Main Screw Diameter MM 75*2
Screw L/D ratio L/D 25
Melting Capacity KG/H 120*2
No of Heating Zone Zone 3*2
Heating Power KW 15*2
Extruder motor Power KW 30*2
Clamping Unit
Double Station
Max space between Platen MM 450-950
Platen Size MM 630*580
Clamping unit KN 300
Control System
Control system Brand B&R ( Austria)
Wall thickness control Brand B&R
Total Power KW 150
Air pressure Bar 6~8
Air consumption M³/h 2.2
Water pressure Bar 4
Cooling Water consumption M³/h 18
Average energy consumption KW 58

30L Extrusion Blow Molding Equipment  150kw For Plastic 0

Company Information


As a member of SUNRISE GROUP. KINGSMAN MACHINERY dedicated and specialized in manufacturing, R&D, and marketing of high-tech blow molding machines. It is about 160 km from KINGSMAN to Shanghai PUDONgle Airport, and 50km to Wuxi Airport.

KINGSMAN equipped with excellent processing machines and strict QC system. Also, KINGSMAN provides blow molding project-solution with customers via advanced techniques, well-performed machines and good after-sales services.


KINGSMAN machine can produce automatic blow molding machine manufacturer specialised in making extrusion blow molding machine, HDPE blow molding, bottle moulding machine, hydraulic blow molding machine, hydraulic servo blow molding machine, plastic molding, extrusion molding, plastic moulding, plastic molding machine, extrusion molding machine, bottle making machine, plastic bottle making machinemilk bottle making machine,stacking barrel making machine, HDPE bottle machine, stacking barrel machine, chemical bottle making machine, jerry can blow molding machine, daily chemical making machine, pesticide bottle making machine, toy making machine.

30L Extrusion Blow Molding Equipment  150kw For Plastic 1


Professional and experienced staffs are devoted in machine manufacturing, R & D, and after-sales departments, integrating German & Italy technology.

KINGSMAN pursuit: precise design, strict manufacturing and management, timely & efficient after-sales service.

KINGSMAN hopes to cooperate with all customers to reach win-win benefit and share the future together.


Our Services

KINGSMAN Company is the leadership of Extrusion blow moulding machine manufacturer Which  had long-Term cooperation with KUATEX TEXTRON company from year 2010-2013 for 6 layer fuel tank machine.

KINGSMAN Company is espeicalized in Automatic Blow Moulding machine with High production.and now focus on Servo hydraulic machine for energy saving.


30L Extrusion Blow Molding Equipment  150kw For Plastic 3


30L Extrusion Blow Molding Equipment  150kw For Plastic 4
